WesAudio CALYPSO

949,00 €*

Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.

Hersteller: WesAudio

Produktinformationen "WesAudio CALYPSO"

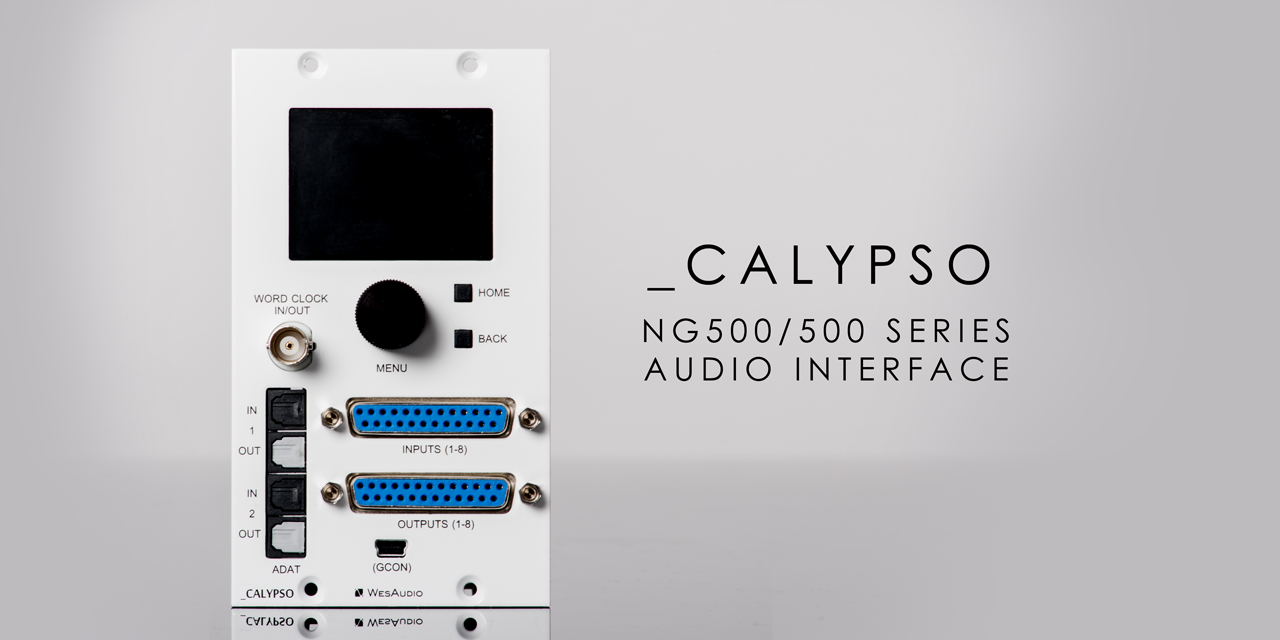

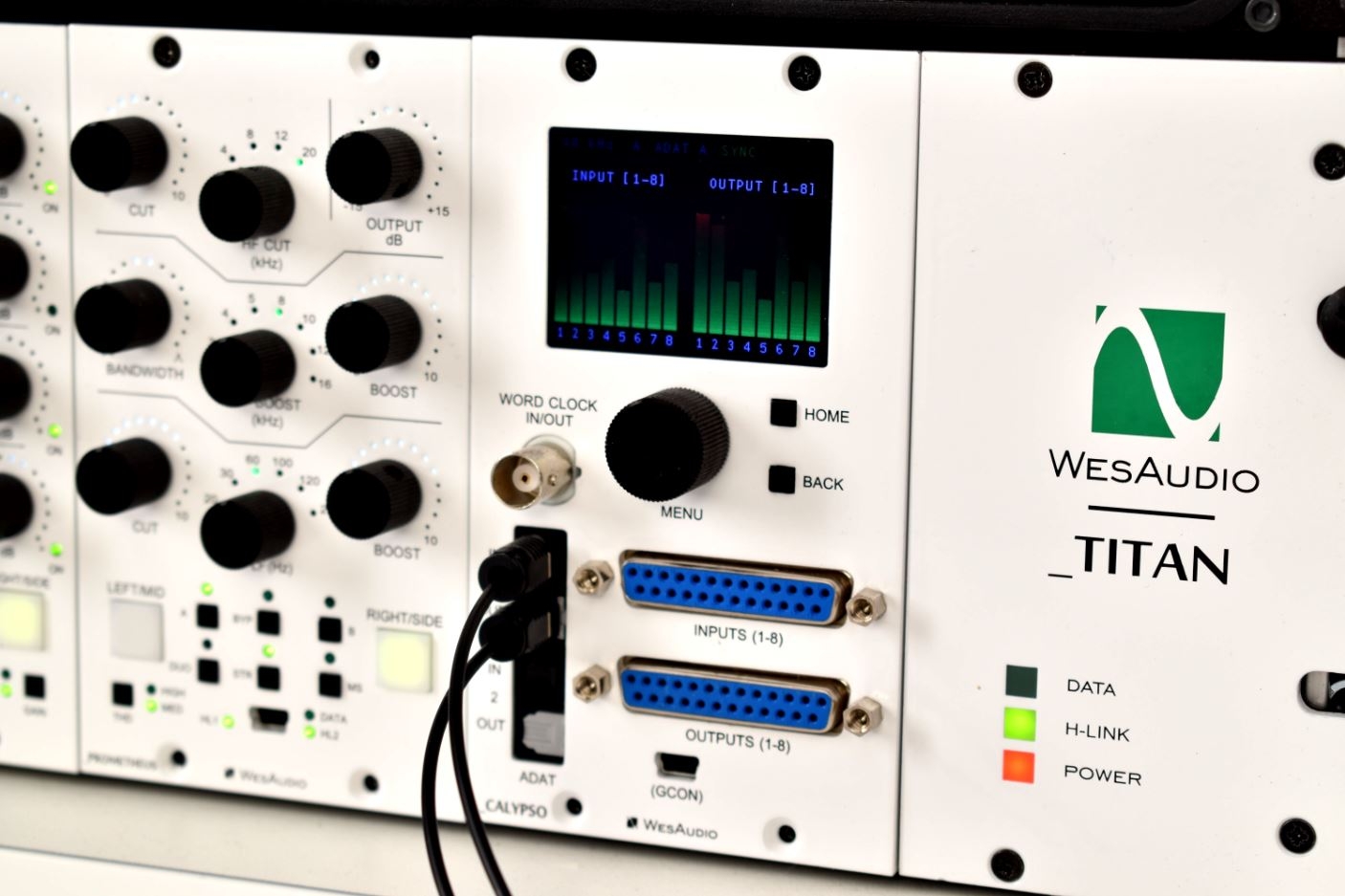

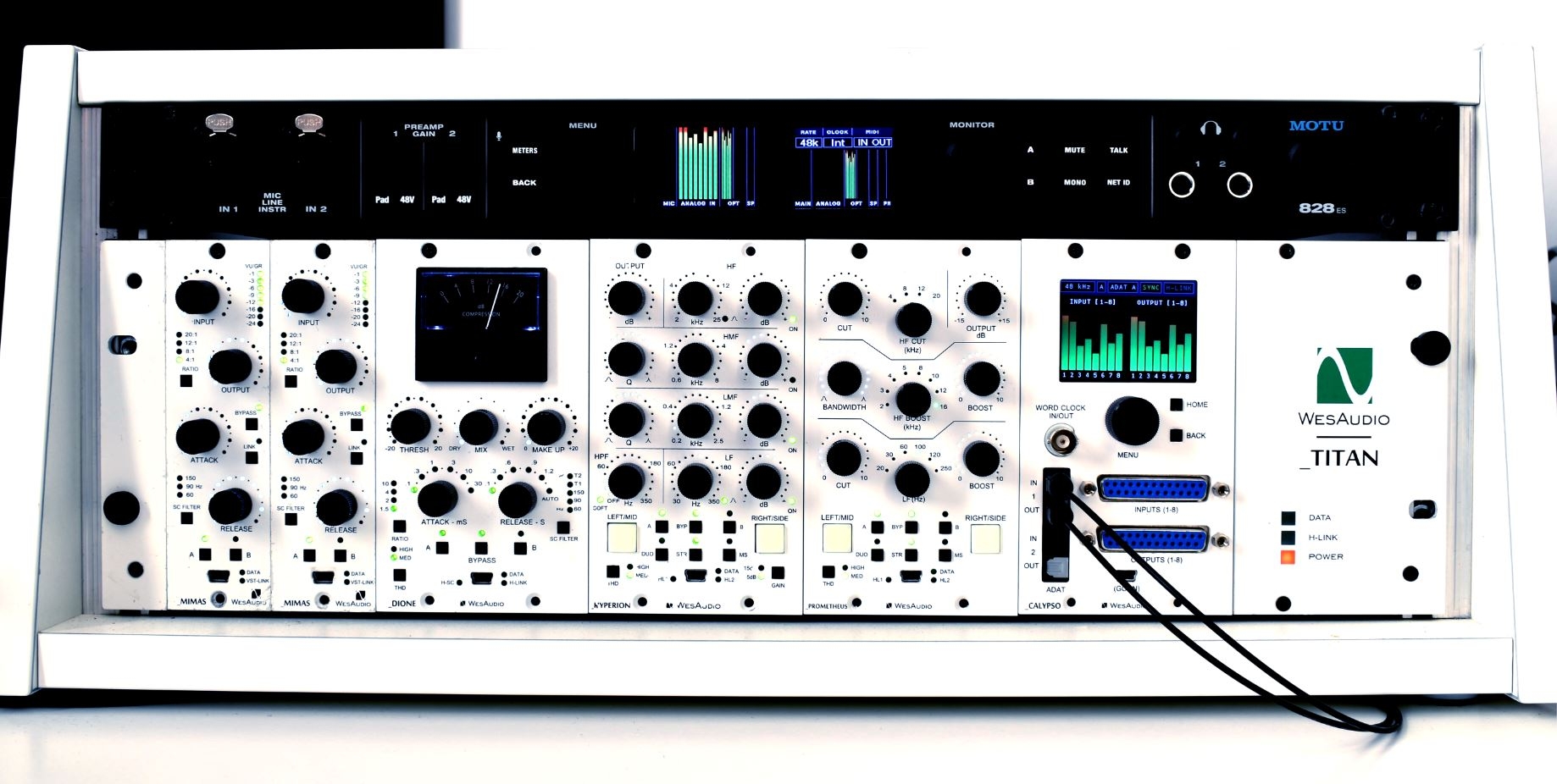

_CALYPSO is an audio interface designed to work in 500 series enclosure. It features state of art 8 channels of AD/DA conversion and perfectly integrates with ng500 chassis - _TITAN, through I.A.C. connector. Besides its very convenient integration with ng500 chassis, it still can be used in standard 500 series enclosure using two DB25 connectors.

Features summary:

24bit conversion
Supported sample rates: 44.1kHz, 48kHz, 88.2kHz(SMUX), 96kHz(SMUX)
Ultra low jitter clock
Word clock IN/OUT
Full integration with _TITAN via IAC connector (Just ADAT cables are need to route signal to, and from chassis)
Two DB25 connectors allows integration with any 500 series chassis
Two converter reference levels +4dBu/-10dBV
LCD screen with channels metering

Specification:

Inputs:

Impedance - 10K
THD+N - 105dBFS
Maximum level - +24dBu
Freq. response - 20Hz-20kHzm +/- 0.1dB
Connector type - DB25/IAC

Outputs:

Impedance 100ohm
THD+N - 103 dBFS
Maximum level - +24dBu
Freq. response - 20Hz-20kHzm +/- 0.1dB
Connector type - DB25/IAC

Sicherheits- und Warnhinweise:	Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt.

WesAudio

Wes Audio Sp. z o.o.

Zegadlowicza 54 PL-71-370 Szczecin Poland

info@wesaudio.com
