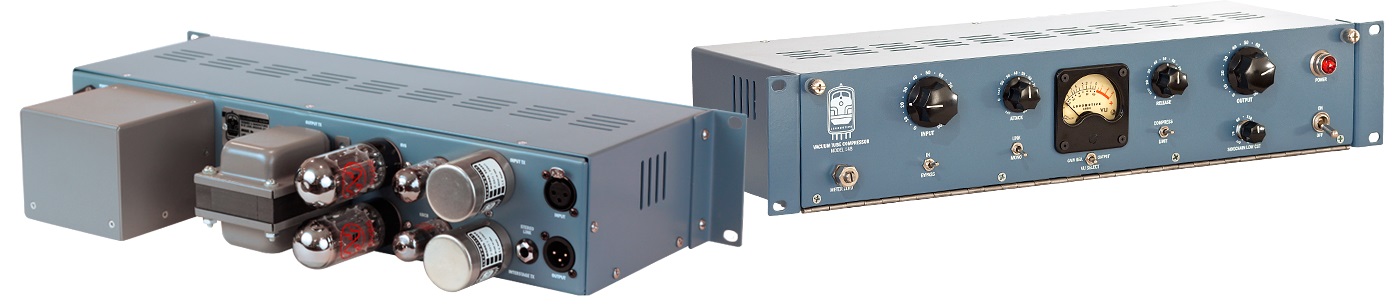

Locomotive Audio 14B PCB
2.999,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
Produktinformationen "Locomotive Audio 14B PCB"
Locomotive Audio 14B printed circuit board version - A Vari-Mu Compressor That Will Make Your Vocal Sit Perfectly. The Real Sound of Vari-Mu Tube Compression at Your Fingertips. Just like its popular vintage inspirations, the Gates Sta-Level, UA 175B, RCA BA-6A and Collins 26U, the results are a sound that cannot be replicated with any other method of gain reduction. The Locomotive Audio 14B delivers!
TRANSFORMERS Super premium MuMetal shielded input and interstage transformers
SPEED & TONE Fast UA 175B attack meets smooth Gates Sta-Level Output
LOW CUT FILTER Adjust & cut the low frequencies that trigger compression
STEREO LINK Use the 14B aggressively on your stereo room mics and overheads or gently on your mix bus
Features:
- Stereo Link switch
-
Sidechain Low Cut filter control: Off and 70-350Hz
-
Hard-wire bypass switch
-
Compression turned off with full counterclockwise attack position, switching to line amplifier
-
Two position Compress-Limit Switch
-
Two position VU meter switch: Gain Reduction - Output
-
6BC8 balance adjustment on interior of unit
-
Custom Sifam backlit VU meter
-
XLR input and output connections
-
Custom MuMetal shielded input and interstage transformers
-
Custom output transformer
-
Hand-built in USA
-
Heavy 16 gauge steel chassis
-
115v/230v AC mains option on rear
-
Lifetime warranty parts and labor
| Sicherheits- und Warnhinweise: | Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt. |
|---|
Locomotive Audio
Tubes: (1) 6BC8, (1) 12AY7, (2) 6V6s
Input load impedance: 5kΩ
Output impedance: <1kΩ
Variable Attack: (300 µS - 20 mS)
Variable Release: (100 mS - 2 Sec)
Compression (4:1 ratio) or Limiting 10:1 ratio)
Frequency response: 20Hz-20kHz
THD+N: <1%
S/N ratio: >70dB
Dimensions: 19"w x 3.5"h x 10"d (2u rackspace)
Shipping Weight: 20 lbs.
Power Consumption (120/240VAC): 42 watts
