Heritage Audio OST-8 adat (8-Slot Enclosure, 500 Series)

1.099,00 €*

Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.

Hersteller: Heritage Audio

Produktinformationen "Heritage Audio OST-8 adat (8-Slot Enclosure, 500 Series)"

Features

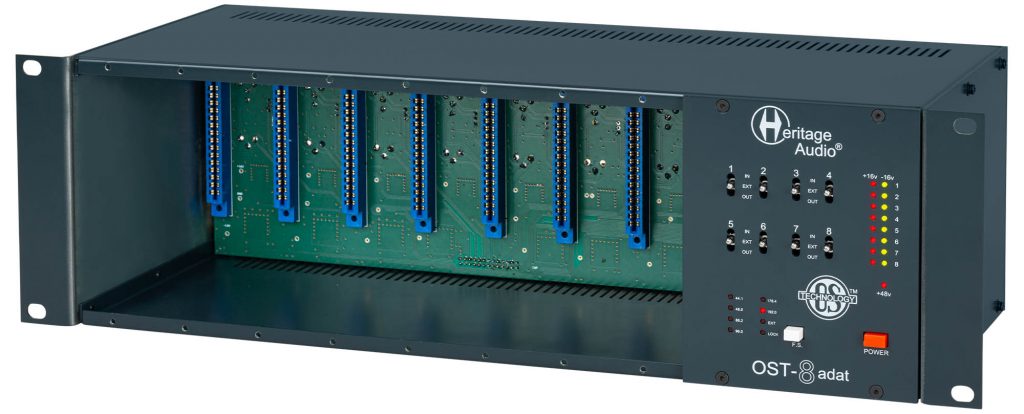

Eight slot, rack-mountable 500 Series enclosure for mobile and project studio recording.
New link feature allows each channel to be linked to the next at the push of a button, no patch cables required.
Each channel individually regulated, filtered, and protected for highest performance, lowest noise, and best protection.
Capable of delivering up to 400mA per rail per slot, or 1.8 Amps total (2.0 Amps non continuous), whichever is reached first. Phantom power supply delivers up to 140mA total.
Independent Status LEDs per slot on front panel for voltage rails.
Power switch on the front panel.
Widest possible range of compatibility with any 500 Series device made, including ‘power hungry’ class A and vacuum tube designs. Vertical architecture accommodates ‘double wide’ modules.
Heavy gauge steel chassis and aluminum front panel, rugged finish, proven, durable design.
Premium 8 channel 24 Bit 192kHz Converter with ADAT/SMUX outputs and Wordclock for reliable syncing.
Switchable path for converters per channel, either directly from the Input, after the 500 series module or from an External Source.
Stand-alone 8 channel premium converter when mic pre use is not required.

Sicherheits- und Warnhinweise:	Die spezifischen Sicherheitshinweise für das Produkt sind in dessen Bedienungsanleitung aufgeführt.

Den für das Produkt verantwortlichen Wirtschaftsakteur finden Sie auf dem Produkt, der Verpackung oder in einer dem Produkt beiliegenden Unterlage.

Alle Produkte im Shop

Technical Specifications

XLR Inputs & Outputs: Gold Plated Balanced +4dB Connectors
DB25: 25 Pin Balanced +4dB Eight Channel Connectors
Phantom Power: 140 mA (max, total)
Slot power: 400 mA per rail or 1.8 A total, 2A peak
ADAT Connector Type: Optical TOSLINK JIS F05
ADAT Format: ADAT Digital Lightpipe with S/MUX
ADAT Supported Sample rates (kHz): 44.1, 48, 88.2, 96, 176.4, 192
ADAT Channel Assignments @ 44.1 kHz, 48 kHz: Port 1 = Channels 1 - 8, Port 2 = 1 - 8 (mirrored)
ADAT Channel Assignments @ 88.2 kHz, 96 kHz: Port 1 = Channels 1 - 4, Port 2 = Channels 5 - 8
ADAT Channel Assignments @ 176.4 kHz, 192 kHz: Port 1 = Channels 1 - 2, Port 2 = Channels 3 - 4
Word Clock Connector Type: BNC
Word Clock Input Termination: 75 Ohms, switchable
Synchronization Sources: Internal, Word Clock (EXTERNAL)
Operating voltage: Universal 100-240 VAC
Dimensions (W x H x L): 200 x 134 (3U) x 482mm
Weight: 4.715 kg
