17.599,00 €*
Verfügbarkeit: Bitte kontaktieren Sie uns in dringenden Fällen.
SCM50ASL Pro: 3-way Active
Features
25mm soft dome tweeter.
Full "SL" spec 9"/234mm bass driver.
ATC 75mm "Super Dome" mid driver.

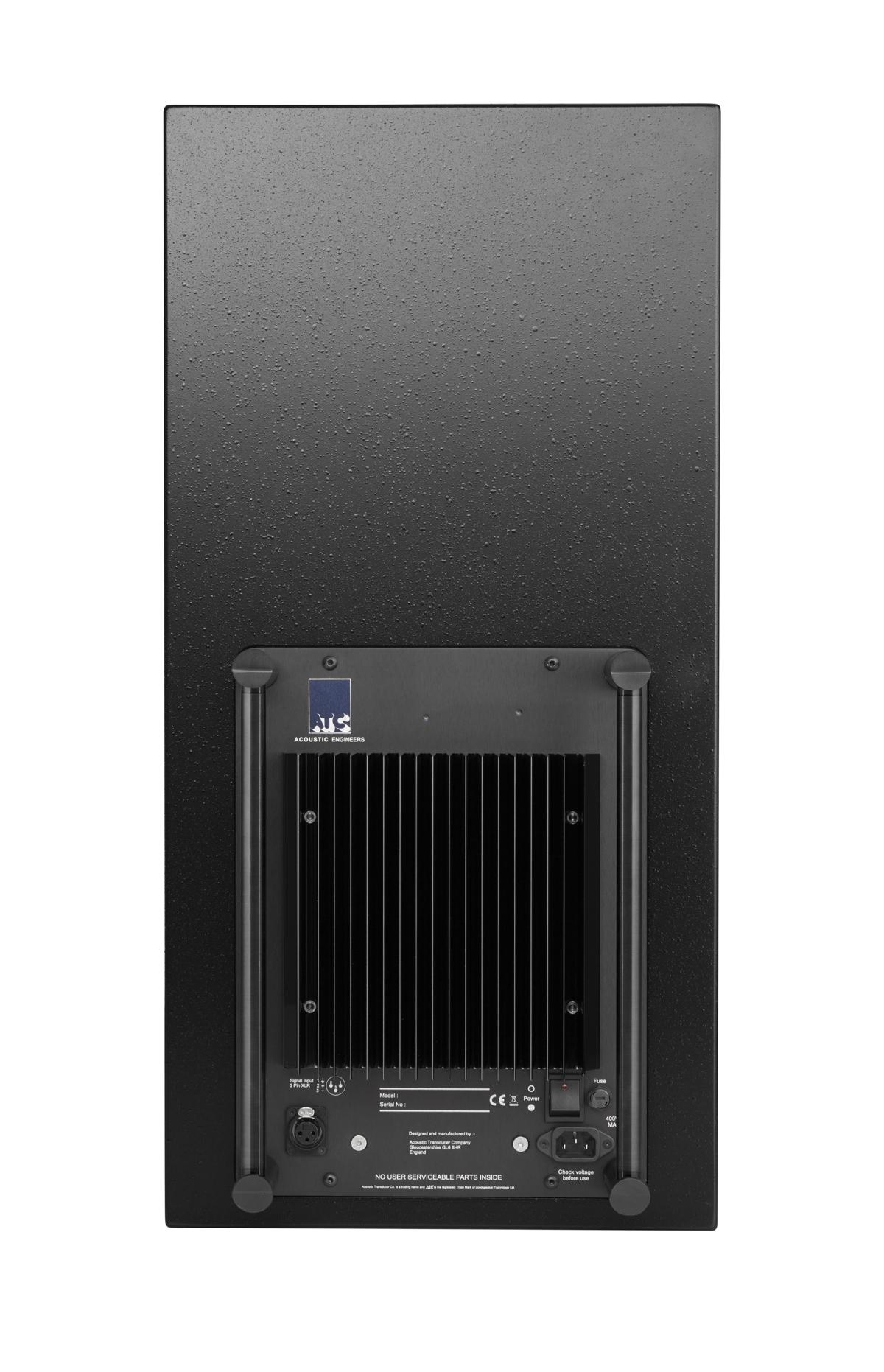

On board ATC grounded plane 350W Tri-amplifier.
LF contour control.
Clip indication.
6 year warranty.
Specifications
Drivers :
HF 25mm, Mid 75mm, LF 234mm
Amplitude Linearity (±2dB) :
70Hz-17kHz
Cut-off Frequencies (-6dB, free-standing) :
38Hz, 22kHz
Horizontal Dispersion :
±80°, Coherent
Vertical Dispersion :
±10°, Coherent
Max. Continuous SPL (1 metre) :
112dB
Crossover Frequencies :
380Hz, 3.5kHz
Input Connectors :
Male XLR
Input Sensitivity :
1V
Input Sensitivity Trim :
±6dB
Input Impedance :
Balanced > 10kΩ
Amplifier Output :
Bass 200W, Mid 100W, High 50W
Filters :
Even Order Critically Damped
Overload Protection :
Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators :
Power On indicator, Gain Reduction warning
LF EQ :
+6dB @ 40Hz
Dimensions (HxWxD) :
716 x 351 x 400mm (28.2" x 13.8" x 18.8") Depth with amplifier at rear adds 3"
Weight :
49kg / 107.8lbs
